Timberline Series
- Rustic
- Stately
- Grand
Durable Outdoor Structures of the Finest Quality
Install one of our Timberlines in one of many various locations:
- Over a spa or hot tub
- As a poolside retreat
- On a deck or patio
- Outdoor kitchen area
- Parks or picnic area
- Plus many more…
Western Red Cedar
Beauty
Beauty is in both sight and scent with its rich tonal properties and natural luster. Red cedar is renowned to architects and home owners around the world.
Durability
Natural resistance to decay, moisture and insect damage has made red cedar a premier material for both interior and exterior applications. Properly finished western red cedar can last for decades in even the harshest of environments.
Stability
Fine, straight gains and uniform texture helps lumber to lie flat, stay straight and hold fasteners tightly.
Enviornmentally Friendly
Wood is the world’s only renewable building material and western red cedar is sourced from one of the most sustainability managed forests in the world. With the majority coming from the Pacific Northwest of the USA.
Standard Features
Standard Sizes
| Sizes | Outside post measurement | Roof line measurement |
| 10×10 | 114″x114″ | 138″x138″ |
| 10×12 | 114″x138″ | 138″x163″ |
| 10×14 | 112″x162″ | 138″x186″ |
| 10×16 | 114″x186″ | 138″x210″ |
| 12×12 | 138″x138″ | 162″x162″ |
| 12×14 | 138″x162″ | 162″x186″ |
| 12×16 | 138″x186″ | 162″x210″ |
| 12×20 | 138″x234″ | 162″x258″ |
| 12×24 | 138″x282″ | 162″x306″ |
| 14×14 | 162″x162″ | 186″x186″ |
| 14×16 | 162″x186″ | 186″x210″ |
| 14×20 | 162″x234″ | 186″x258″ |
| 14×24 | 162″x282″ | 186″x306″ |
| 16×16 | 186″x186″ | 210″x210″ |
| 16×20 | 186″x234″ | 210″x258″ |
| 16×24 | 186″x282″ | 210″x306″ |
Flooring Options
Envision Expression Composite Decking
- Authentic, Deep Grain Using Compression Technology
- Stain, Splinter, and Slip Resistant
- 25 Year Warranty
Azek PVC Decking
- Stain, Scratch, Slip, and Mold Resistant
- Durable and Long Lasting
- Limited Lifetime Warranty
Treated Pine Floor
There is also the option to have no flooring in your Timberline

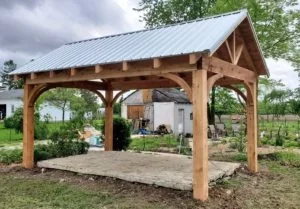

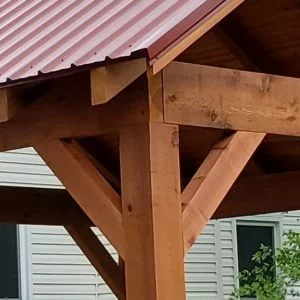

Post Style

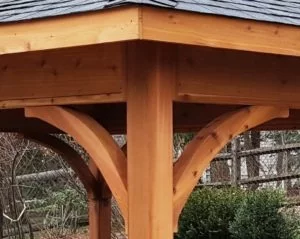

Brace Styles
Ceiling Options

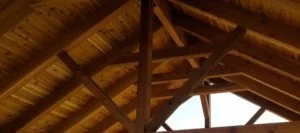

Standard Ceiling
Exposed cedar framing with 1×6 cedar sheathing. An optional wood sealer may be applied to reduce the graying effects of natural weathering.

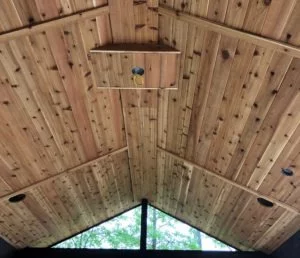

Cedar T&G Ceiling
Cedar tongue and groove boards are fastened to the underside of the roof framing for a finished appearance. An optional wood sealer may be applied.

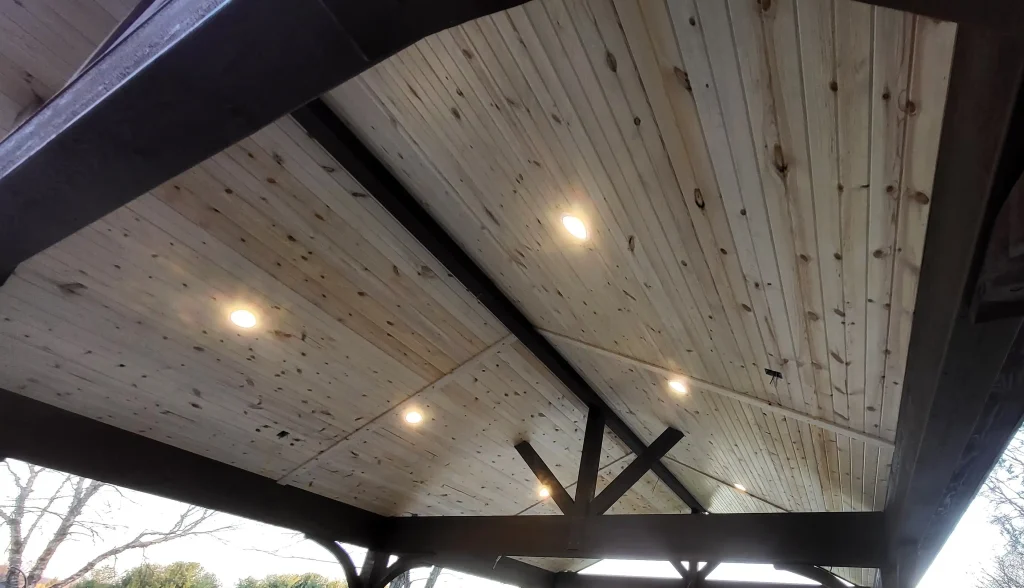

Pine T&G Ceiling
Pine tongue and groove boards are expertly installed beneath the roof framing to achieve a polished look. You may opt to enhance their durability with a wood sealer for added protection.
Metal Roofing
Wood Sealer
Installation Methods

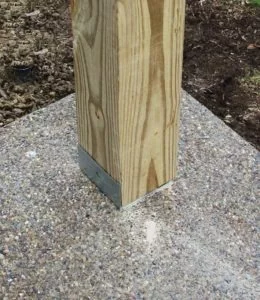

Installed on a Deck or Concrete Pad
- Hidden galvanized post brackets and anchors are used for securing posts to solid-weight bearing surfaces.

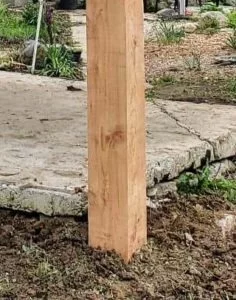

Installed with Posts in the Ground
- Holes are dug to below frost level, then pre-made concrete footer pads are placed at the bottom of each hole. The posts are then placed on top of the footer pads and the dirt is tamped back into place. This option is recommended for dirt areas, loose paver patios or any other areas that do not have a solid-weight bearing surface.
Rough Wiring
Rough in wiring options for switches, fans, lighting or receptacles can be added to any Timberline for an additional charge
- Standard package includes channeling of one post to accommodate wiring for a switch to cross brace for a fan/light.
- Additional channeling or wiring for receptacles or lighting is available for an additional cost.
- Wiring will be stubbed out and accessible for an electrician to make final connections/hookups

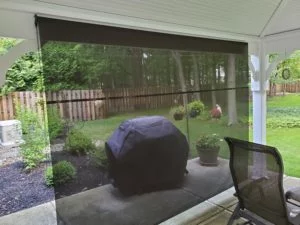

Outdoor Blinds
Antwex 160 Outdoor Shade Fabric
- Woven Polyester Mesh is Flame Retardant and Resists UV Rays, Mildew, and Rot
- Approx Shade Factor of 85%
- Available in 4′ 5′ 6′ 7′ 8′ 9′ and 10′ Widths
- Adjustable to Pull Down 84″
- Can be Mounted on any Side for Extra Shade or Privacy.

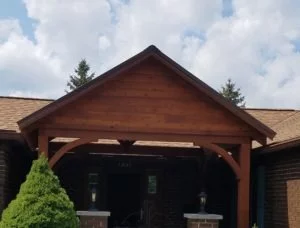

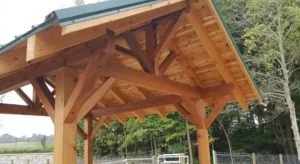

Miscellaneous Add Ons
