Pavilions Series

Quality Alternatives to Temporary Structures

Install one of our Pavilions in one of many various locations:

Over a spa or hot tub
As a poolside retreat
On a deck or patio

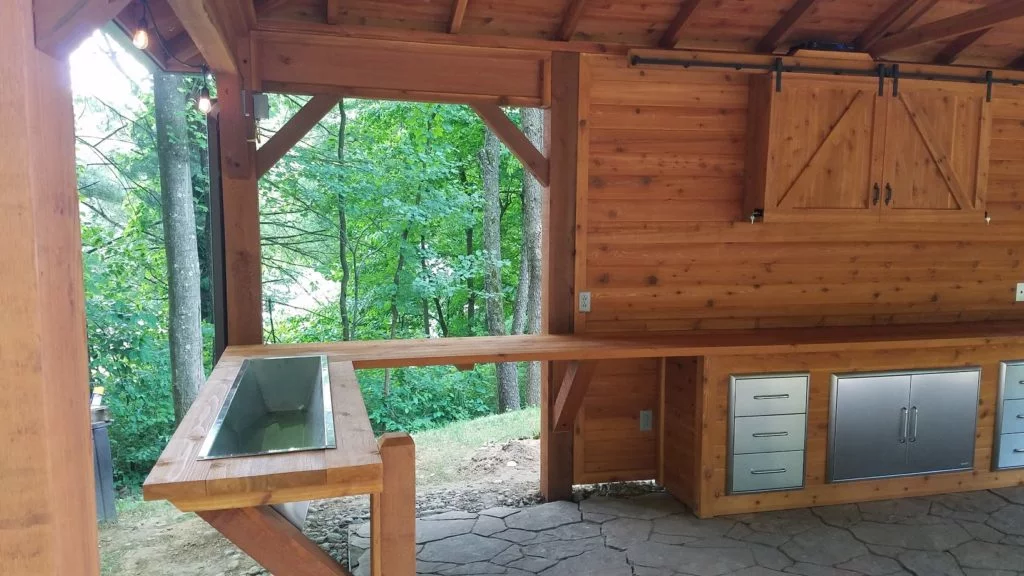

Outdoor kitchen area
Parks or picnic area
Plus many more…

Treated Southern Yellow Pine

Strength
Known as one of the strongest, most versatile species of exterior wood available. Treated lumber remains a staple in the outdoor building industry

Durability
Pressure treated protection against, rot, decay and insect bites.

Stability
Unlike wet lumber purchased at home centers, the lumber used for our outdoor structures is kiln-dried before and after treatment to minimize cracking, warping and twisting. This will also readily accept stains and sealers soon after construction.

Economical
Treated southern yellow pine is plentifully grown in the southern US, making access and availability widespread meaning it is competitively priced.

Vinyl

Timeless Beauty
Classical, sleek, and unaffected by the elements. Vinyl products can add years of value to any home.

Durability
Vinyl components are warranted against rotting, cracking and peeling for a lifetime of use.

Strength
All exterior vinyl structural members are encased with pressure treated wood for strength and stability.

Low Maintenance
Vinyl products are becoming more and more popular due to ease of maintenance as there is no need for painting or staining which saves time and money. Occasional soap and water cleanup is all that is needed in most situations.

Western Red Cedar

Beauty
Beauty is in both sight and scent with its rich tonal properties and natural luster. Red cedar is renowned to architects and home owners around the world.

Durability
Natural resistance to decay, moisture and insect damage has made red cedar a premier material for both interior and exterior applications. Properly finished western red cedar can last for decades in even the harshest of environments.

Stability
Fine, straight gains and uniform texture helps lumber to lie flat, stay straight and hold fasteners tightly.

Enviornmentally Friendly
Wood is the world’s only renewable building material and western red cedar is sourced from one of the most sustainability managed forests in the world. With the majority coming from the Pacific Northwest of the USA.

View Full Gallery

Standard Features

Standard Sizes

Sizes	Outside Post Measurement	Roof Line with Standard Overhang	Roof Line with 12″ Extended Overhang
8×8	90″x90″	98″x98″	114″x114″
10×10	114″x114″	122″x122″	138″x138″
10×12	114″x138″	122″x146″	138″x163″
10×14	112″x162″	122″x170″	138″x186″
10×16	114″x186″	122″x194″	138″x210″
12×12	138″x138″	146″x146″	162″x162″
12×14	138″x162″	146″x170″	162″x186″
12×16	138″x186″	146″x194″	162″x210″
12×20	138″x234″	146″x242″	162″x258″
12×24	138″x282″	146″x290″	162″x306″
14×14	162″x162″	170″x170″	186″x186″
14×16	162″x186″	170″x194″	186″x210″
14×20	162″x234″	170″x242″	186″x258″
14×24	162″x282″	170″x290″	186″x306″
16×16	186″x186″	194″x194″	210″x210″
16×20	186″x234″	194″x242″	210″x258″

Flooring Options

Envision Expression Composite Decking

Azek PVC Decking

Treated Pine Floor

There is also the option to have no flooring in your Pavilion

Vinyl Colors

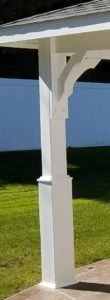

Post Style

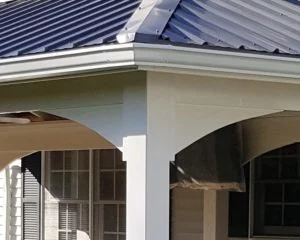

Brace Styles

Roof Overhang

Ceiling Options

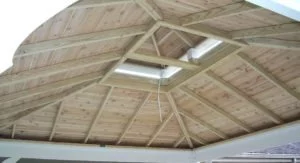

Standard Ceiling

Exposed pressure-treated framing with 1×6 cedar sheathing. An optional wood sealer may be applied to reduce the graying effects of natural weathering.

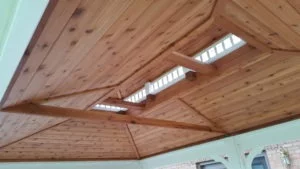

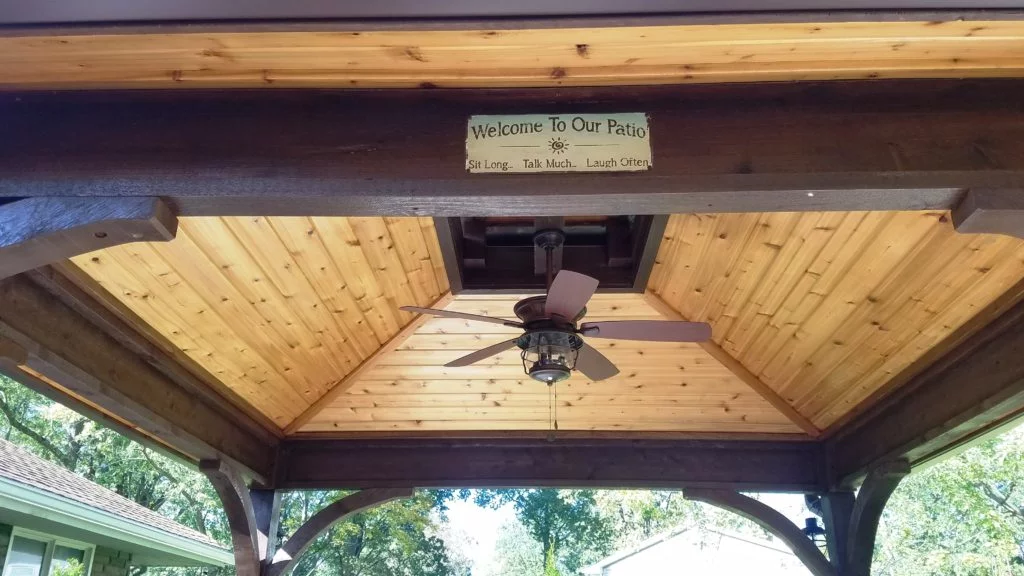

Cedar T&G Ceiling

Cedar tongue and groove boards are fastened to the underside of the roof framing for a finished appearance. An optional wood sealer may be applied.

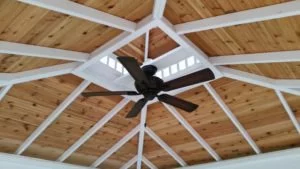

Painted Ceiling

Framing can be stained to match main pavilion components or most any custom color. Sheathing boards can be stained to match framing or in any of the standard colors.

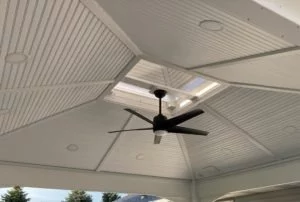

Vinyl Ceiling

Beaded vinyl soffit is fastened to the underside of the roof framing for a finished appearance. All exposed wood is covered for a complete maintenance-free pavilion. Available in the three standard vinyl colors.

Roof Styles

3 Tab Shingles

Dimensional Shingles

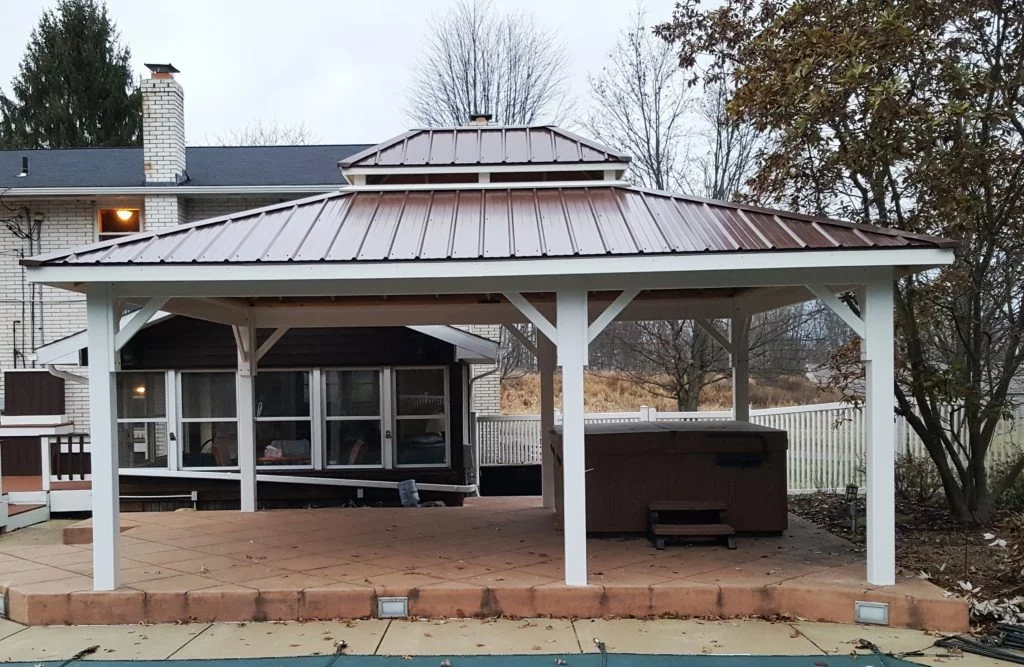

Metal Roofing

Wood Sealer

Installation Methods

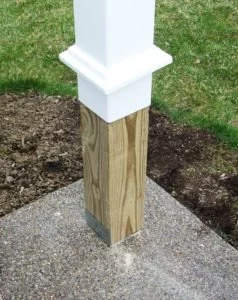

Installed on a Deck or Concrete Pad

Hidden galvanized post brackets and anchors are used for securing posts to solid-weight bearing surfaces.

Installed with Posts in the Ground

Holes are dug to below frost level, then pre-made concrete footer pads are placed at the bottom of each hole. The posts are then placed on top of the footer pads and the dirt is tamped back into place. This option is recommended for dirt areas, loose paver patios or any other areas that do not have a solid-weight bearing surface.

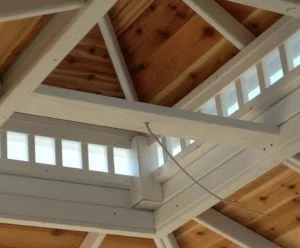

Rough Wiring

Rough in wiring options for switches, fans, lighting or receptacles can be added to any Pavilion for an additional charge

Standard package includes channeling of one post to accommodate wiring for a switch to cross brace for a fan/light.
Additional channeling or wiring for receptacles or lighting is available for an additional cost.
Wiring will be stubbed out and accessible for an electrician to make final connections/hookups
